Description
Powerful performance – With 12th Generation Intel® Core™ Processors, Altos P10 F8 provides state of art performance. Except for built-in Intel® UHD Graphics high-quality display technology, Altos P10 F8 also support a variety of the latest NVIDIA® graphics cards. With optional NVIDIA® Quadro RTX professional graphics card, its RT and Tensor core support real-time ray tracing and artificial intelligence acceleration, providing the best graphics computing performance.
Flexible expansions, easy maintenance – Altos P10 F8 has multiple PCIe Gen4 expansion slots, dual PCIe GEN4 M.2 NVMe SSD slots, provides the most flexible and high speed expansion options. Also with latest Wi-Fi 6E to further mitigate the limitation of distance. And thanks to its unique chassis design, users can easily replace or update internal components, significantly reduce maintenance time & costs.
- Operating System: Windows 11 Home 64-bit.
- Processor: Intel® Core™ i3-12100 Processor, 4 Cores, 8 Threads, 12 MB Cache, Base Frequency: 3.30 GHz up to
- Max Turbo Frequency: 4.30 GHz, 12th Generation
- Chipset: Intel® B660 Chipset
- Memory: 8GB (1x 8GB) DDR4, Four(4) Memory Slots; Upgradable Up to 128GB
- Storage 1 & 2: 256GB PCIe M.2 SSD + 1 TB 3.5-inch 7200 RPM
- Graphics: NVIDIA® GeForce® GT 720 with 2 GB of DDR3 (supporting: DVI, HDMI)
- Audio: 7.1 CH HD Audio (Realtek ALC897)
- Networking/LAN: Intel® I219V (1GbE) 10/100/1000
- Wireless LAN: 802.11ax/ac/a/b/g/n, Wi-Fi 6 and Bluetooth® 5
- Optical Drive: WITHOUT
- Card Reader: SD Card Reader
- Speaker: Internal Speaker
- Power Supply: 300W 12V (TFX)82+ Active PFC

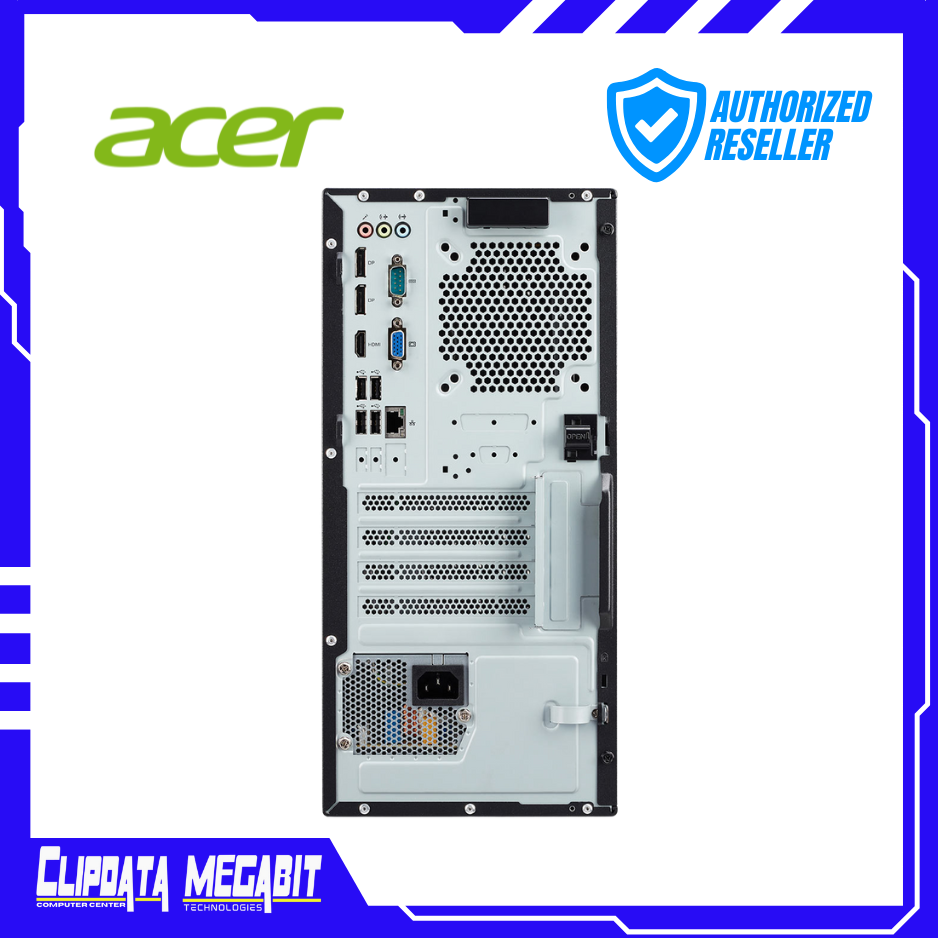

- Standard I/O Ports:
- Front I/O connectors:
• Audio jack(s): 2 (In/Out)
• USB3.2 Gen2 Type-A: 1 (w/1.5A Sharing@S5)
• USB3.2 Gen1 Type-A: 3
• USB3.2 Gen2 Type-C: 1 - Rear I/O connectors:
• VGA port(s): 1
• HDMI 2.1 port(s): 1
• DisplayPort 1.4 (DP) ports: 2
• COM port(s): 1
• RJ45 port(s): 1
• Audio jack(s): 3 (IN/Out/MIC)
• USB 2.0 Port(s): 4 - Expansion Slot(s)
• Number of PCIe x16 slot(s): 2 (One of slots is PCIe 3.0 x4)
• Number of PCIe x1 slot(s): 1 (PCIe 3.0 x1)
• Number of PCI slot(s):
• M.2 slot (for SSD): 2
• M.2 slot (for WLAN): 1 - Keyboard & Mouse: USB Keyboard and USB Optical Mouse
